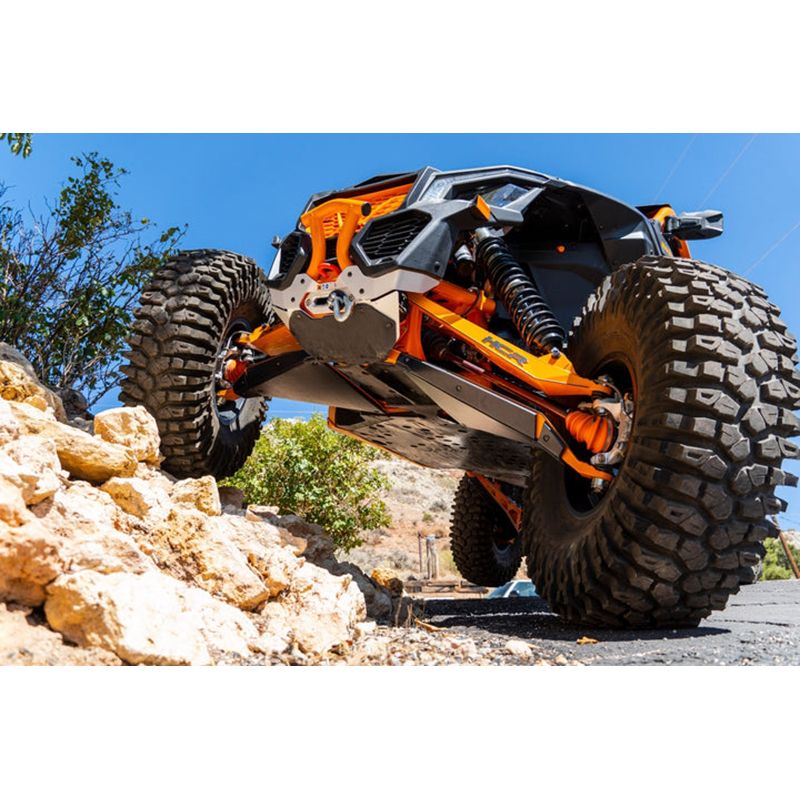

Can-am Maverick X3 XRS 72" Dual Sport OEM Replacement Front A-arms

** 2021 Smart shock Models will need additional bracket

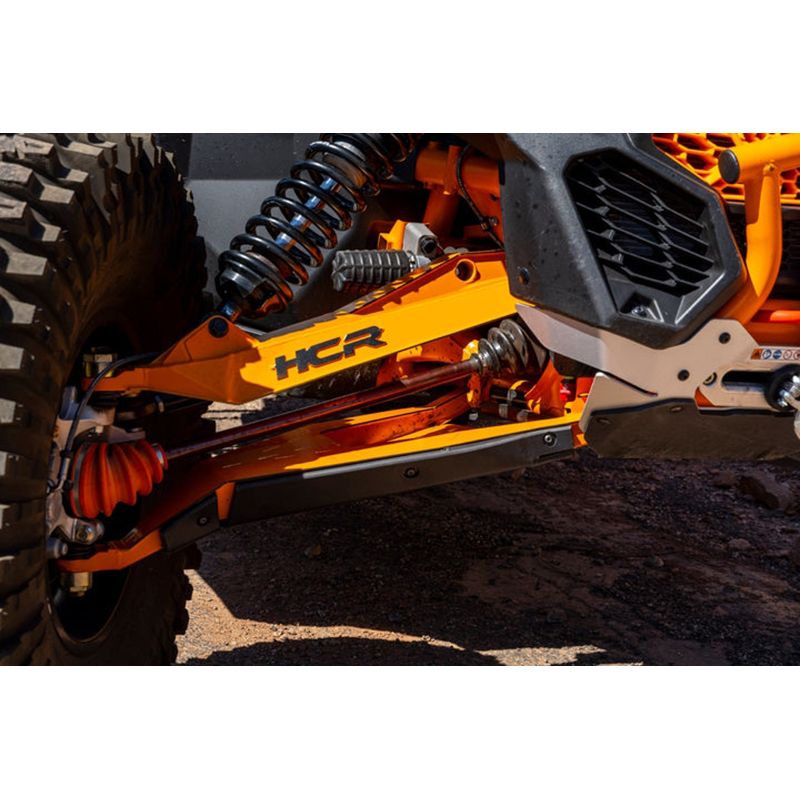

HCR Suspension's Can-Am Maverick X3 72" Heavy Duty OEM Dual-Sport Replacement Front A-arm kit.

Part#: MAV-05400-1

Take the already impressive X3 one step further, HCR has developed an American - made product to look, feel and function better than factory. The HCR X3 suspension is designed as an OEM Factory replacement for the X RS 72" model front A-arms. Both the Can Am Maverick X3 Dualsport and Elite kits are manufactured with HCR’s proprietary Elite material . This custom alloy is 30% stronger in yield and tensile strength than 4130 Series Chromoly and goes through several processes for better wear resistance and overall strength.

Kit Contains:

• 4 Front A-arms, 2 upper & 2 lower
• 16 Delrin Bushings
• Brake line mounting hardware

Note: You will need to use OEM crush sleeves, wear plates, bolts and hardware and ball joints.

NOTE: 14" WHEELS WILL NOT FIT

*Front sway bar link mounting hole are 10mm, newer models must drill hole to 12mm*

ALLOW 4-6 WEEKS FOR POWDER COAT, CALL FOR CURRENT LEAD TIMES
