CFMOTO UForce U10 PRO Long Travel kit (Pre-Installed balljoints and bushings)

Transform your CFMOTO UForce U10 PRO into a true high performance off road machine with the Thumper Fab Long Travel Suspension System. Designed for riders who demand more capability, control, and confidence, this suspension upgrade delivers increased wheel travel, improved handling, and superior ride quality across rough terrain.

Engineered specifically for the UForce U10 PRO platform, the Thumper Fab Long Travel Suspension dramatically improves suspension articulation and stability while improving strength. Whether you’re navigating rocky trails, deep ruts, whoops, or high speed off road environments, this system allows the chassis to stay planted while the suspension works harder and smoother.

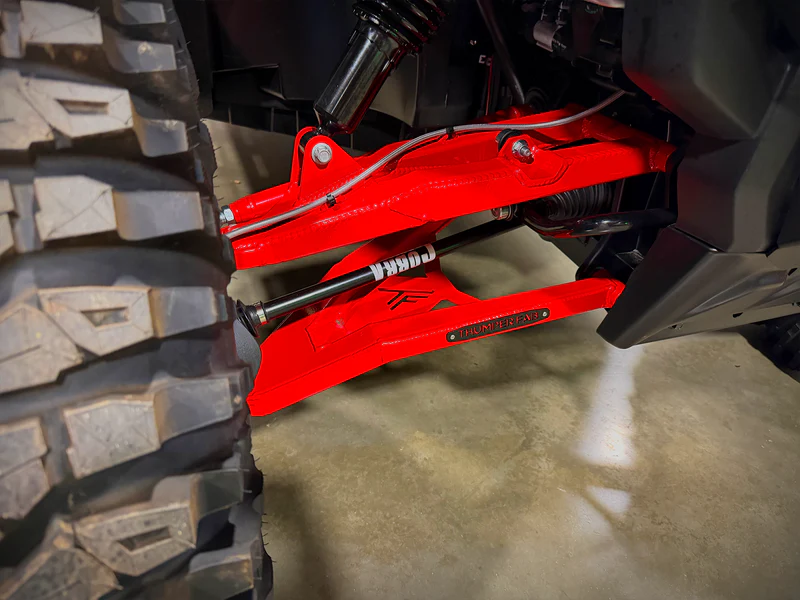

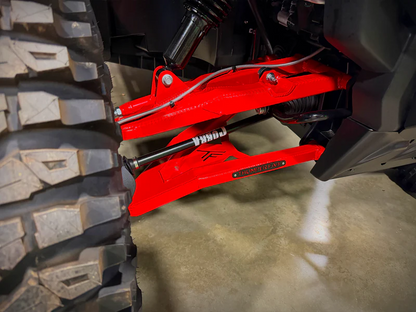

Why a boxed A-Arm design?
A boxed arm will give you increased torsional strength for the strongest control arm design possible. There is more to a Thumper Fab boxed control arm than meets the eye. Underneath the steel cladding is a skeleton design that adds strength exactly where you need it and saves weight. Strength is important but unnecessary weight increases your unsprung mass and reduces your shock’s ability to compensate. The Thumper Fab design adds strength and reduces weight for optimal ride quality.

Easy Installation:
this kis comes with professionally installed bushings and Heavy Duty ball joints for easy installation. We take the hassle out of pressing in your bushings and ball joints yourself. Utilizing our precision press operation, we are able to ensure your bushings and ball joints are correctly installed and not hammered or pressed in a way that would reduce their quality and lifespan.

Kit Includes:

• Long Travel A-Arms Front
• Long Travel A-Arms Rear
• black powder coating on all arms
• HD Tie Rods
• Thumper Fab Elite Balljoints and bushings installed
• Stainless Steel Braided Brake Lines
• Complete Replacement Axles
• shock relocation bracket to utilize stock shocks
• Compatible with factory sway bar


Standard Benefits:

• Increased tire clearance (up to 35”)
• CNC Laser Cut & Formed US Steel for precision fitment
• Easy bolt on installation using factory suspension mounts
• High clearance design for added ground clearance

• Compatible with factory sway bar

• Made in the USA
• Backed by our Lifetime Warranty

Bragging Benefits:

• Take your U10 PRO to the next level of awesomeness.
• Conquer any terrain with ease.

Complete Axle Replacement:
We make it EASY to install this entire kit! We provide complete Cobra Axle replacement axles with inner and outer CVs that come fully assembled. Both of these axles are COMPLETE with no need to disassemble and reassemble your OEM axles with longer bars. Rzeppa style CV’s that will achieve high angles, articulate freely with no binding and extend further than stock axles. We use the highest quality CV boots to keep the elements out and the grease in.

PRODUCT FITMENT GUIDE
2026 CF Moto UForce U10 PRO Highland
2026 CF Moto UForce U10 XL PRO Highland
2026 CF Moto UForce U10 PRO
2026 CF Moto UForce U10 XL PRO
2025 CF Moto UForce U10 PRO Highland
2025 CF Moto UForce U10 XL PRO Highland
2025 CF Moto UForce U10 PRO
2025 CF Moto UForce U10 XL PRO
