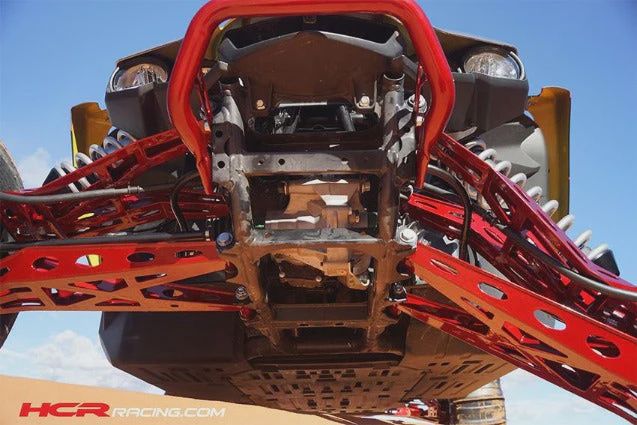

Yamaha YXZ 1000 Elite Long Travel Suspension Kit
$9 800.00
Sold out
Sold out
Product Details
HCR Suspension's YXZ Elite Long-Travel Suspension System
Part #: YXZ-02600
Kit Features:
Usable Travel : Over 20 front & Over 21” Rear Travel
+4 inches wider per side; Additional 8 inches of track width
+4 inches of wheel base added ; 2 front , 2 rear
minimal weight increase of only 13 pounds on Elite kit while increasing strength exponentially.
Fiber Laser Cut construction for precise fit and finish
CNC'd 4130 heat treated billet mounting points for increased integrity
Angled catacomb design for optimal force distribution
RCV +4 extended axle bars. Heat Treated & through hardened
Custom King 2.5 HCR race Series Shocks Off -road shocks
Unique trailing arm inspired design for minimal added weight and increased strength.
High Clearance Boxed A-Arm Design
Each piece is carefully tig welded for strength and aesthetics
OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance
compatible with stock wheels
High-Clearance Arms provide an increase of 1.25” in ground clearance
100% Bolt-on installation using factory mounting points
Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability
