Kawasaki Teryx Gen II/T4 Long Travel Moab Edition Suspension Kit

HCR Suspension's Teryx Moab Long-Travel Suspension System

Compatible With 2nd Gen T-2 & T-4 Models (2012-CURRENT)

** DOES NOT FIT TERYX S MODELS

** PLEASE CONFIRM YOUR YEAR FOR THE CORRECT AXLES**

Part #: TER-05400

The Kawasaki Teryx Moab kit is the most sought after suspension system for the Teryx platforms as ride quality is improved to a new standard of comfort and control. This is due to the increase in numbers all around on the machine optimizing this kit; +5" per side is added making the car 72" width at the wheels, then an increase wheel base of +3.5" and 16" of Suspension travel doubling stock travel! With these increases in number 28" tires can be used without any further components, but the increased wheelbase is designed to run Larger tires ( please contact the sales dept for more info on tires recommended ) with use of the HCR Bed Lift kit to help eliminate bed rub in the rear Suspension area.

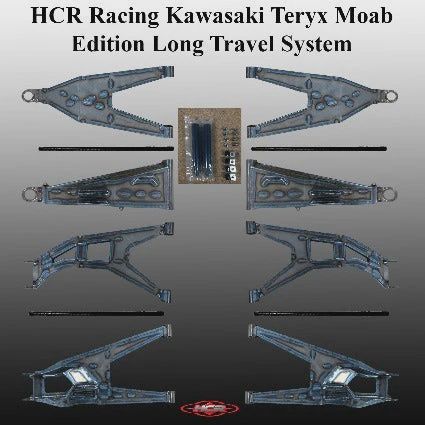

Contents of the Kit:- 8 High Clearance Control Arms
- 4 HCR Spec King 2.0 Shocks with compression adjusters (HC5173-01A/HC5173-02A)
- 4 RCV Extended axle bars
- 2 Tie-Rod Extensions
- Brake line mounting hardware
