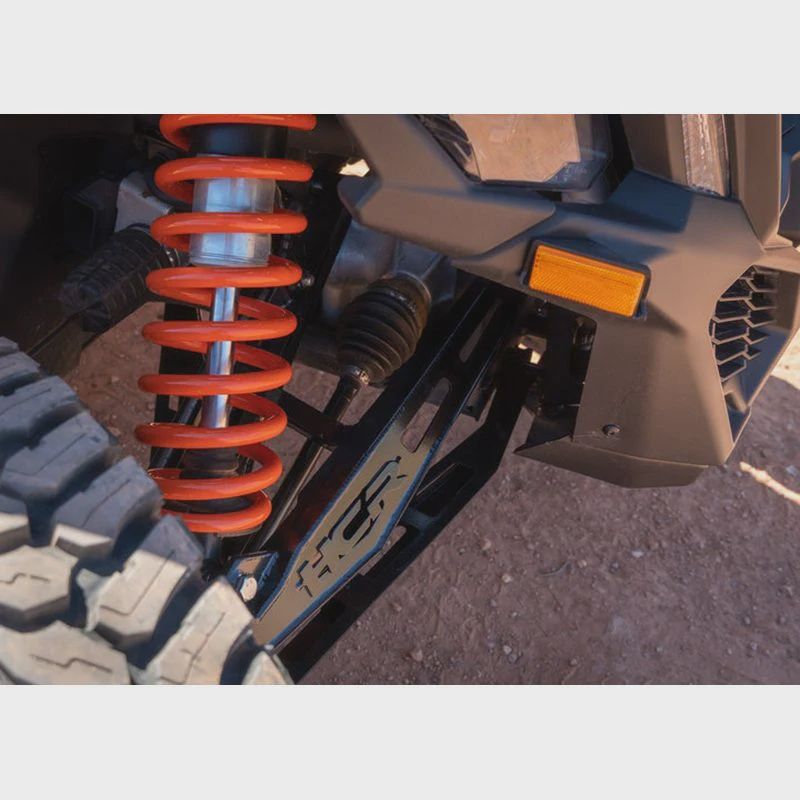

Can-Am Maverick X3 XDS 64" Duner OEM Replacement Suspension Kit 2017-2021

Part # MAV-05200

Add clearance, strength and appeal to your Can Am X3 64" with the HCR OEM Elite kit. This true boxed kit follows the HCR Elite portfolio while adding to the aggressive stance of the  X3.

• 1.5" High clearance A-Arm design allows for added ground clearance under key components.

• Manufactured with HCR Elite Alloy; 30% stronger than 4130 Series Chromoly

• Delrin bushings included for increased strength to mounting points.

• Internal catacomb design allow for increased strength from hollow factory design .

• comparable weight to factory with added structure.

 FITMENT : 2017-2021 DS Models

*WILL NOT FIT DOUBLE SHEAR HUBS*

*Does not come with trailing arm radial bearings (Replace with Can-Am OEM hardware)*

NOTE: 14" WHEELS WILL NOT FIT

The MAV-05200 64" Suspension Kit includes: 4 Front A-arms (2 upper, 2 lower), 2 Rear Trailing Arms, Delrin Bushings for replacement in the front A-arms, brake line mounting hardware, and shock bolts.

NOTE: For this kit you will need to reuse or replace with OEM/aftermarket components: Ball joints in the front A-arms, Crush Sleeves and wear plates in the Front A-arms, Trailing arm Radial joints, mounting bolts and hardware otherwise not provided.
